PC Water Cooling Kit DIY Water Cooling Kit with Cooler CPU/GPU Block Cylindrical Water Reservoir Pump LED Fan 240mm Heat Sink Connectors Kit All-in-one Liquid Computer Water Cooling set

Description

Specifications:

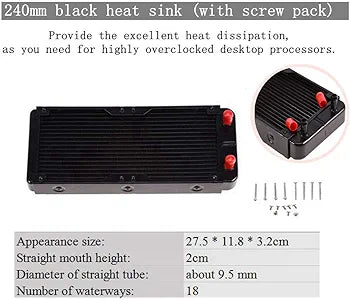

1. 240mm black heat sink (with screw pack):

Appearance size: 27.5 * 11.8 * 3.2cm

Straight mouth height: 2cm

Diameter of straight tube: about 9.5 mm

Number of waterways: 18

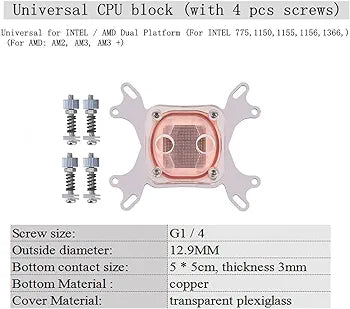

2. Universal CPU block (with 4 pcs screws):

Screw size: G1 / 4

Outside diameter: 12.9MM

Bottom contact size: 5 * 5cm, thickness 3mm

Material: Bottom: copper; Cover: transparent plexiglass

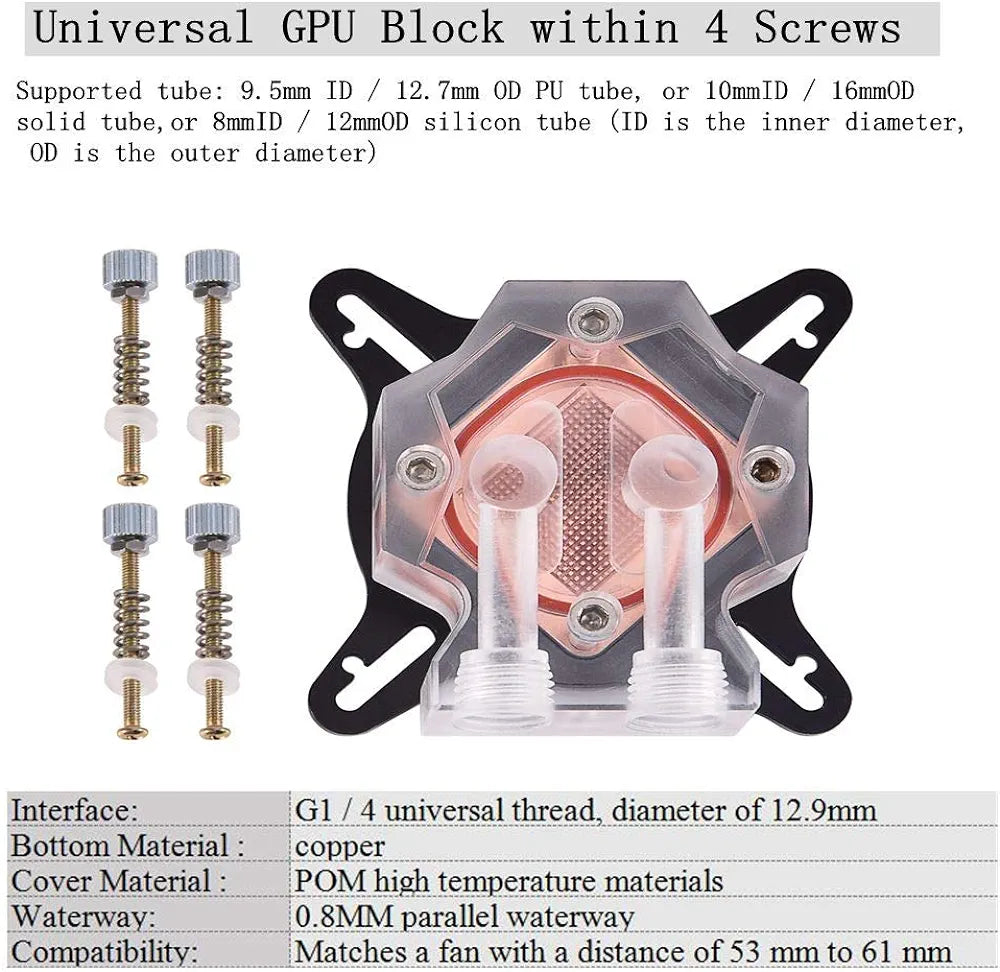

3. Universal GPU block

Interface: G1 / 4 universal thread, diameter of 12.9mm

Material: Bottom: copper; Cover: POM high temperature materials

Waterway: 0.8MM parallel waterway

Compatibility: Matches a fan with a distance of 53 mm to 61 mm

Supported tube: 9.5mm ID / 12.7mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)

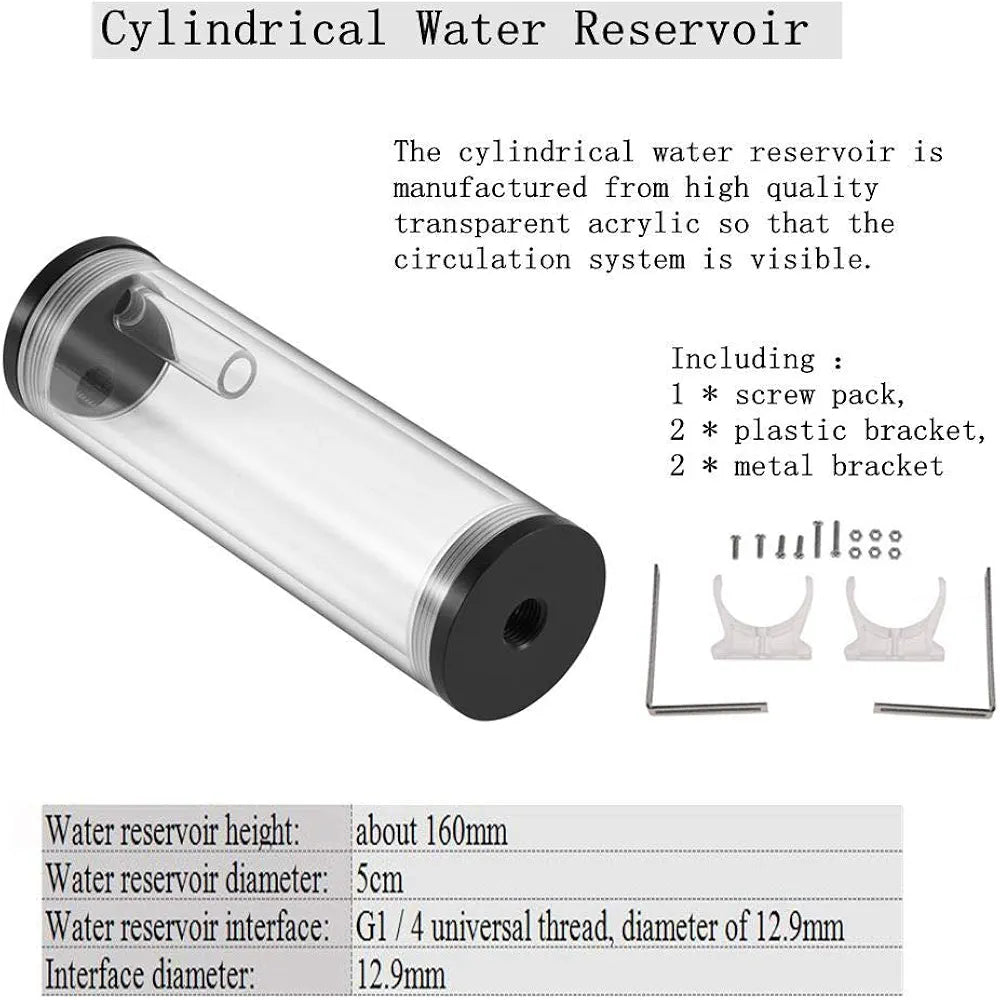

4. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw pack * 1):

Water reservoir height: about 160mm

Water reservoir diameter: 5cm

Water reservoir interface: G1 / 4 universal thread

Interface diameter: 12.9mm

5. Transparent hose:

Inner diameter: 8mm

Outer diameter: 12mm

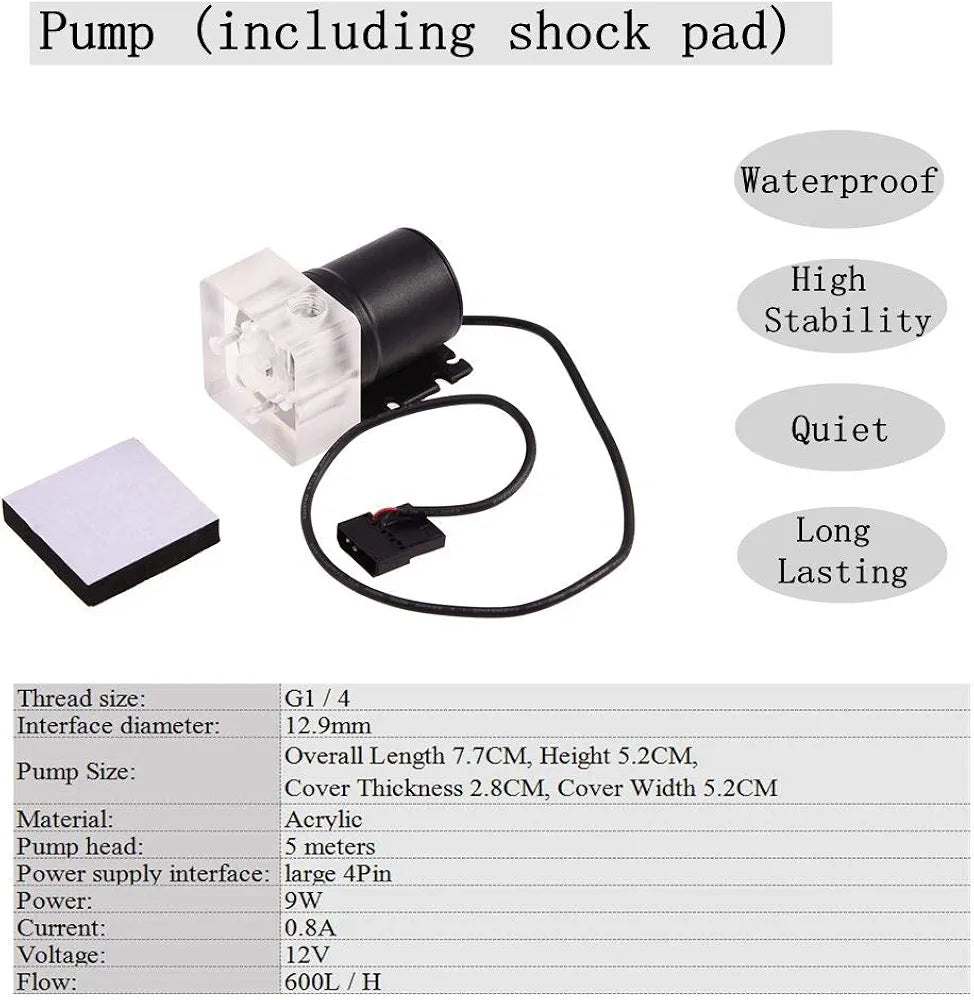

6. Pump (including shock pad):

Features: Waterproof, high stability, quiet, long lasting.

Thread size: G1 / 4

Interface diameter: 12.9mm

Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM

Material: Acrylic

Pump head: 5 meters

Power supply interface: large 4Pin

Power: 9W

Current: 0.8A

Voltage: 12V

: 600L / H

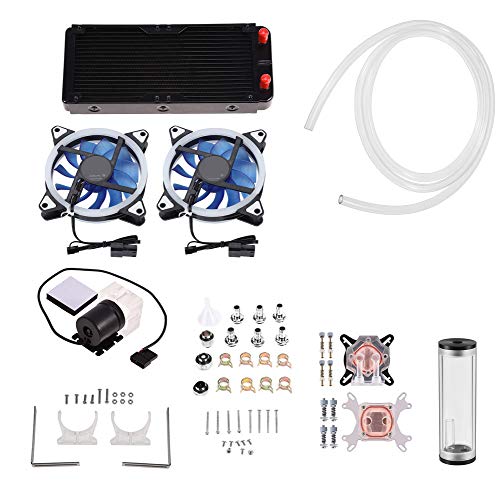

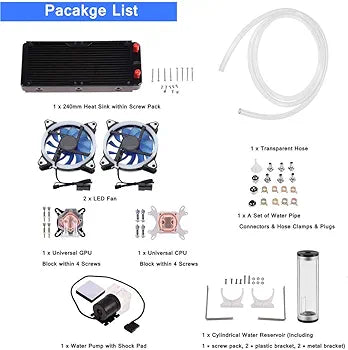

Pacakage List:

1 x 240mm Heat Sink within Screw Pack

2 x LED Fan

1 x Universal CPU Block within 4 Screws

1 x Universal GPU Block within 4 Screws

1 x C(Including 1 * screw pack, 2 * plastic bracket, 2 * metal bracket)

1 x Transparent Hose

1 x with Shock Pad

1 x A Set of Water Pipe Connectors & Hose Clamps & Plugs



Features & details

CPU / GPU Block: The CPU/GPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance. Universal CPU block for INTEL / AMD Dual (For INTEL 775,1150,1155,1156,1366,) (For AMD: AM2, AM3, AM3 +) Do not support for AMD4CPU CPU block, bracket supports for AMD INTEL mainstream hole installation.

Cylindrical Water Reservoir: The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.

: Waterproof, high stability, quiet, long lasting. 240mm Heat Sink: Provide the excellent heat dissipation, as you need for highly overclocked desktop processors.

Transparent Hose: Upgraded flexible anti-explosion, hoses enable a space-saving installation and exceptional durability.

LED Fan: The extreme performance dual fans offer a high air static pressure with lower noise. Appearance size: 12 * 12cmPower supply interface: large 4Pin + small 3Pin
