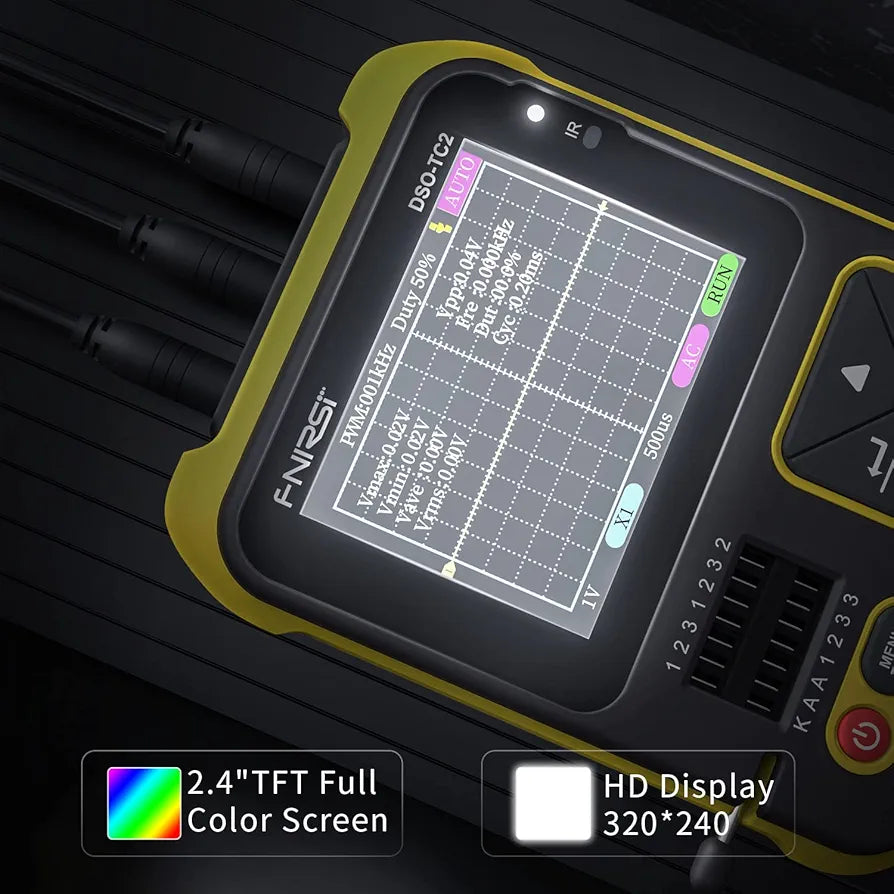

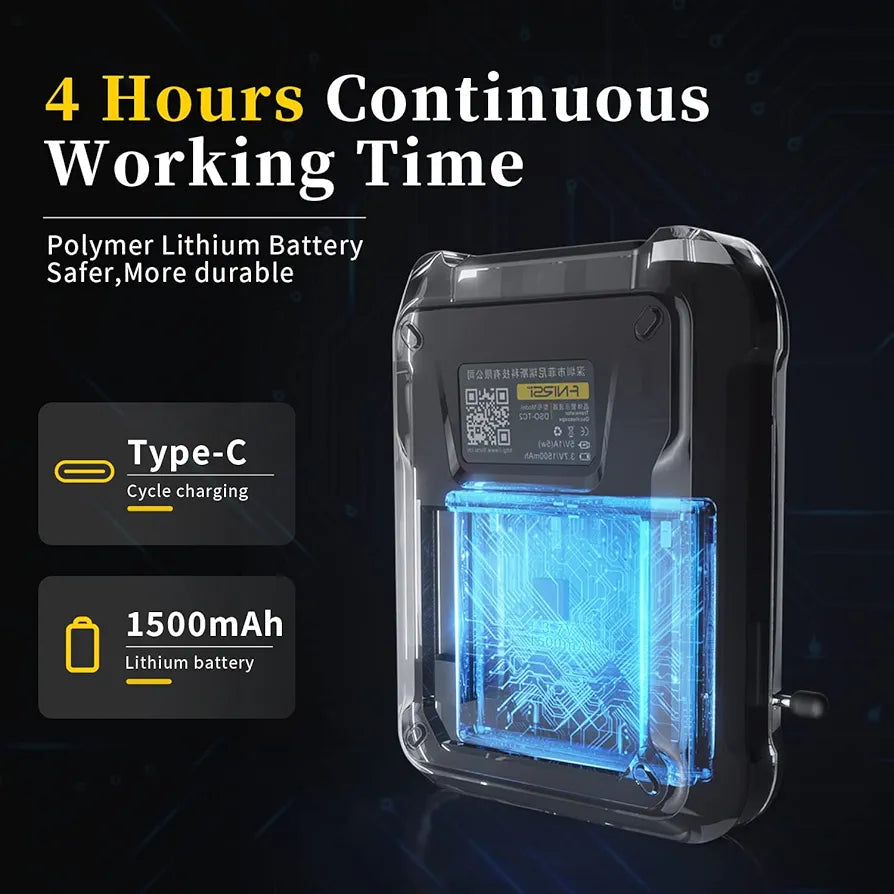

FNIRSI DSO-TC2 ingeniously integrates digital oscilloscope, electronic component tester, PWM signal generator and other functions into one.Equipped with large-size color dot matrix TFT display.Built-in rechargeable lithium battery. Bring more practical functions to users with a small size, it also has good portability.

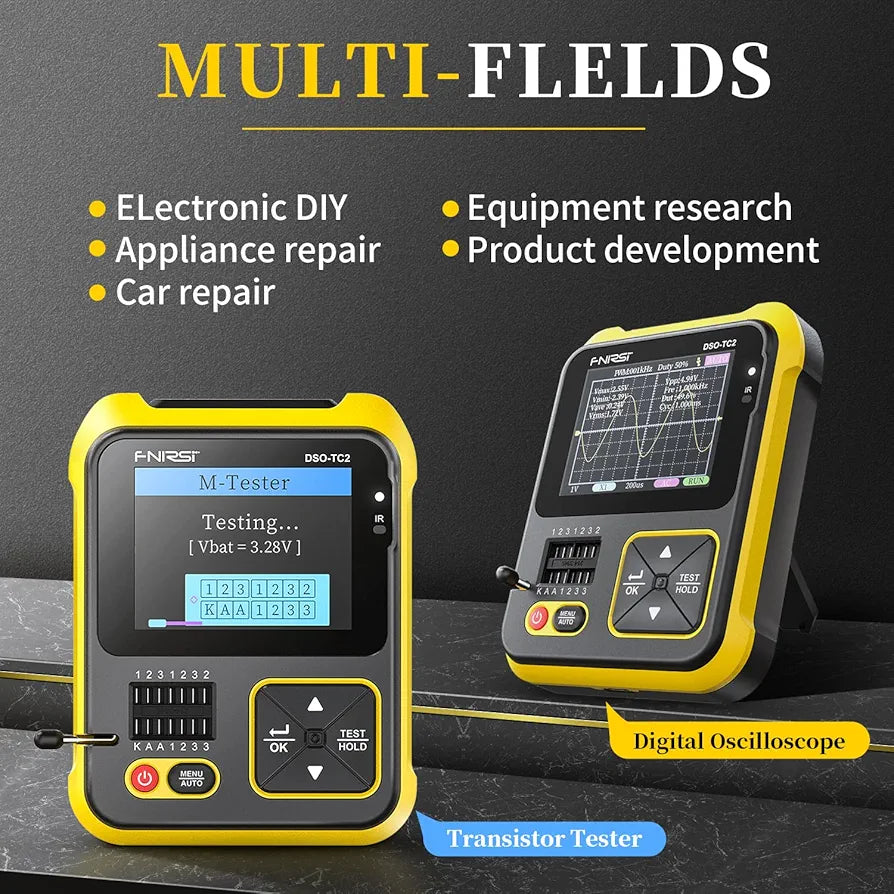

DSO-TC2 transistor tester is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components."Mos Test" mode can test various types of transistors, and can identify device type, pin polarity, hFE, turn-on voltage, junction capacitance, can test capacitance, resistance, inductance components, etc.

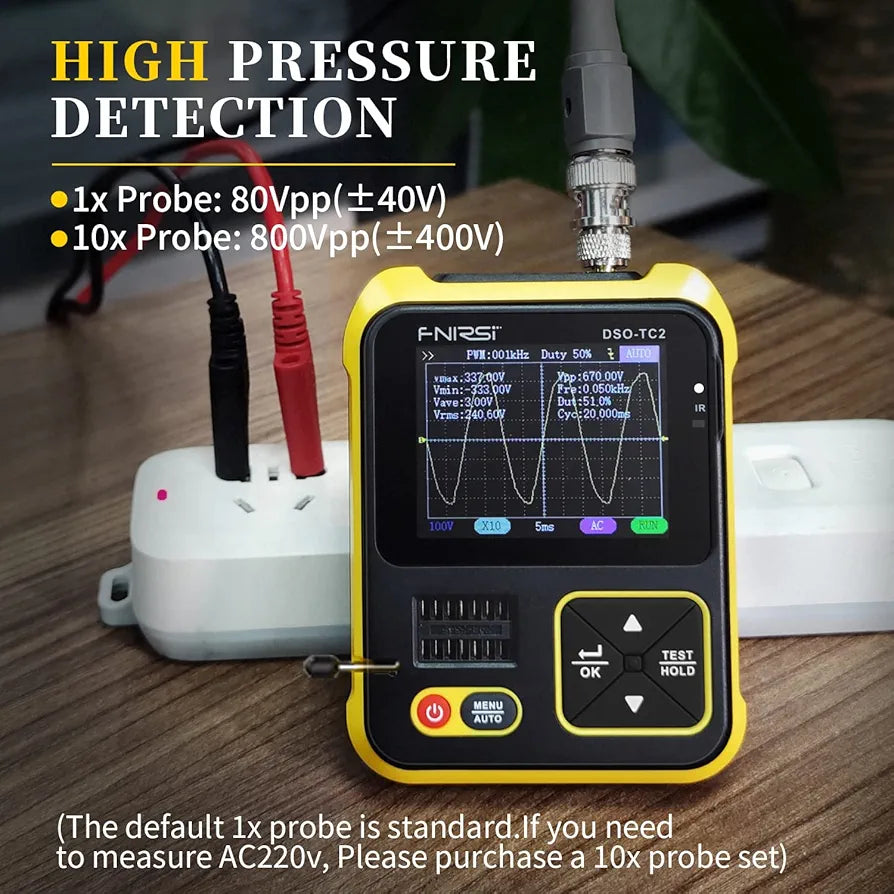

DSO-TC2 handheld oscilloscope has a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth. With complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.
DSO-TC2 transistor tester can automatically identify and measure various transistors.Including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, double diodes, thyristors, etc.,and passive components such as resistors, inductors, capacitors, etc.
